Introduction
The Blackmagic Design ATEM Mini Extreme is a live production switcher designed for creators, broadcasters, businesses, and video production teams. It brings multiple camera sources, computers, microphones, and other video devices into one production workflow.
With eight HDMI inputs, built-in streaming capabilities, USB webcam output, and advanced video effects, the ATEM Mini Extreme can support a wide range of live productions. Users can switch between cameras, manage audio, add graphics, and monitor several video sources from one device.
The switcher is useful for live events, interviews, online classes, gaming broadcasts, webinars, and studio productions. It also offers software-based controls for users who want more flexibility than the physical control panel alone can provide.
What Is the Blackmagic Design ATEM Mini Extreme?
The ATEM Mini Extreme is an advanced HDMI live production switcher from Blackmagic Design. It allows users to connect up to eight HDMI video sources and switch between them during a live production.
The device supports HD video standards up to 1080p60. Its input processing includes frame-rate and format conversion, along with video input resynchronisation. These features help manage different compatible HDMI sources during a production.
The ATEM Mini Extreme also includes two HDMI program outputs, two USB-C connections, Ethernet, two stereo audio inputs, and a headphone output. Its built-in streaming engine supports direct streaming through RTMP, while USB webcam output allows it to work with compatible video conferencing and broadcasting applications.
For creators who use social platforms as part of their production workflow, understanding platform settings can also be useful. Our guide to Facebook Dark Mode on iOS explores a different aspect of the Facebook experience and its mobile interface.
Live Streaming and Online Broadcasting
Live streaming is one of the main reasons creators choose the ATEM Mini Extreme. Instead of switching between cameras manually or relying entirely on software, users can manage multiple video sources through the switcher.
The device supports direct streaming through Ethernet using RTMP. This makes it suitable for compatible streaming platforms and services, including YouTube Live and Facebook Live. It can also provide USB webcam output for applications such as Zoom, Microsoft Teams, Skype, and other compatible software.
A typical live production setup may include:
- A main camera for the presenter
- A second camera for another viewing angle
- A computer displaying slides or presentations
- A gaming console or other HDMI source
- Microphones for presenters and guests
- Graphics and media stored in the production system
The operator can switch between these sources while the programme is running. This helps create a more organised broadcast without requiring separate switching equipment for every input.
Live broadcasts can also support business presentations and recruitment events. For example, organisations researching hospitality opportunities may find the Cugid.com Vacantes Nuevo Hotel guide useful as a separate reference when exploring hotel-related vacancy information.
Control Interface and Physical Connections

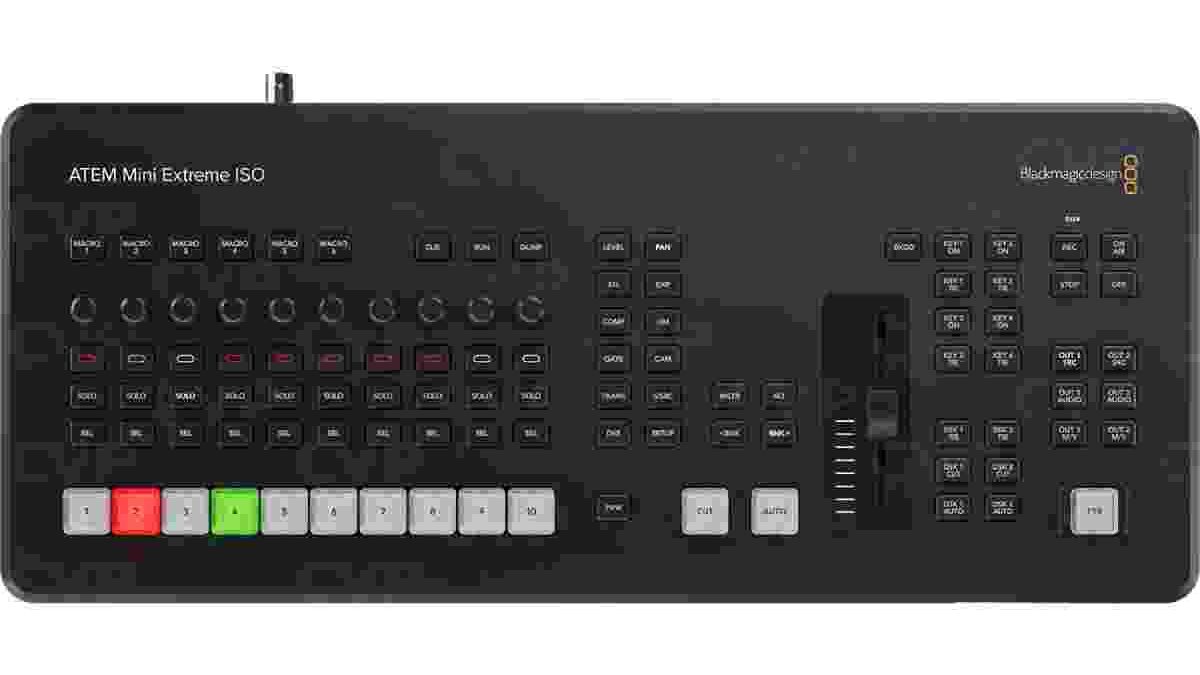

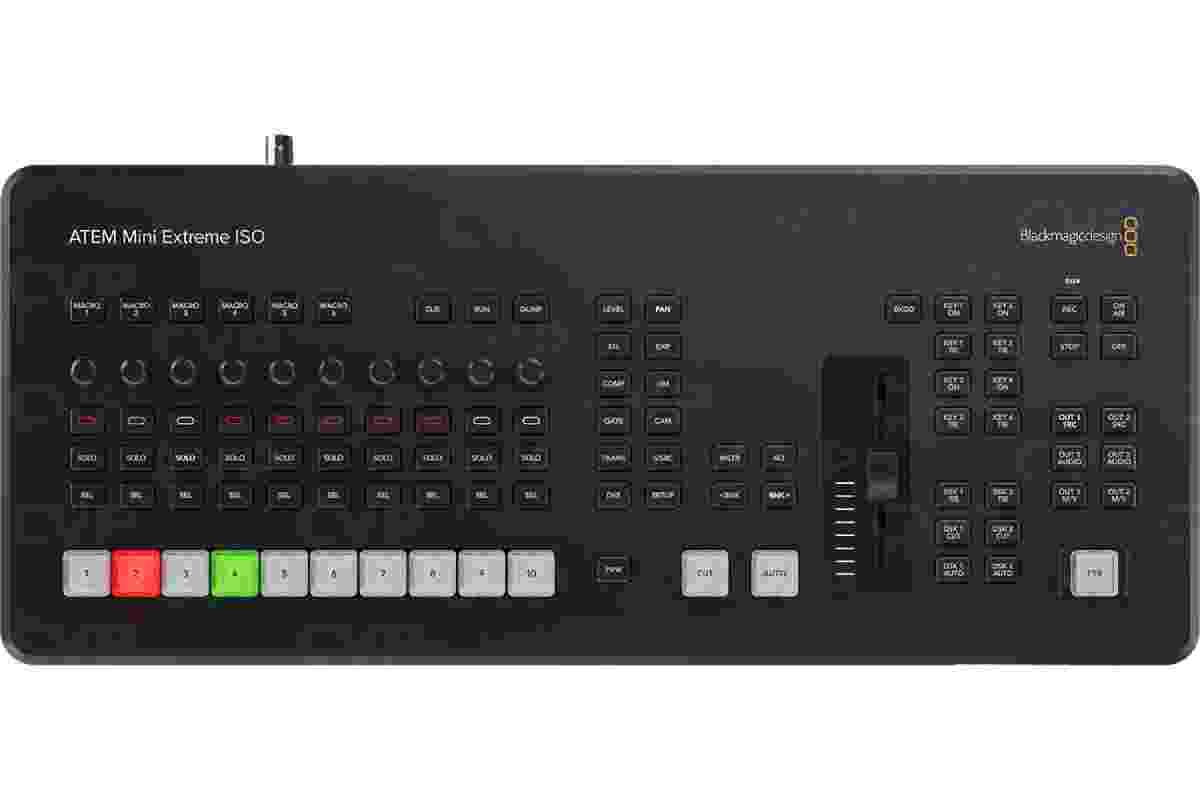

The ATEM Mini Extreme has a physical control panel with buttons for selecting video sources, managing transitions, controlling audio, and operating streaming and recording functions.
The source buttons make it possible to select an input quickly. Dedicated controls also help users manage the programme output, preview sources, and multiview display.
The rear panel provides connections for cameras, computers, microphones, networking, and external storage. Its main connections include:
- Eight HDMI inputs for video sources
- Two HDMI program outputs
- Two USB-C ports for compatible recording and webcam workflows
- Ethernet for streaming and software control
- Two 3.5mm stereo audio inputs
- A 3.5mm headphone output
Users can also connect the switcher to a computer and operate it through ATEM Software Control. This software provides additional options for switching, audio mixing, graphics, and production settings.
Production Features and Software Control
The ATEM Mini Extreme combines hardware controls with software-based production tools. This arrangement gives operators flexibility when managing more complicated broadcasts.
ATEM Software Control provides access to switching functions, audio settings, media management, camera controls, and other production options. The software can be useful when a production requires more detailed adjustments than the front panel provides.
The switcher also supports macros. These allow users to save and repeat selected production actions, which can help simplify recurring tasks.
For example, a presenter could use a macro to prepare a particular camera layout, transition, and graphic arrangement. This reduces the need to repeat every operation manually.
Email and system errors can also become part of a production team’s technical workflow, particularly when managing communication between presenters and organisers. Readers dealing with Outlook-related issues can consult our guide to resolving the PII_EMAIL_88906589DBA20A6335C2 error for a separate troubleshooting reference.
Multiview Monitoring
Multiview monitoring allows operators to see several video sources on one connected display. Instead of checking each camera separately, they can monitor the programme, preview, input feeds, and other production information together.
The ATEM Mini Extreme supports configurable layouts with 4, 7, 10, 13, or 16 views. Depending on the selected layout, the display can show:
- Programme output
- Preview output
- All eight HDMI inputs
- SuperSource
- Clean Feed
- Media players
- Streaming status
- Recording status
- Audio meters
This arrangement is particularly useful for productions involving several cameras. Operators can check the incoming feeds before switching them into the main programme.
It also helps identify problems such as missing video, incorrect camera framing, or audio-level issues before they affect the broadcast.
Camera Control and Video Effects
The ATEM Mini Extreme includes several tools for improving the appearance of a live production. Its switching controls support direct cuts, automatic transitions, and other visual effects.
The available effects include:
- Cut: Changes immediately from one source to another.
- Mix: Creates a gradual transition between video sources.
- Dip: Transitions through a selected colour.
- DVE: Provides digital video effects, including picture-in-picture layouts and movement effects.
- Chroma key: Allows users to replace a green-screen or other selected background with another visual source.
The switcher also supports upstream and downstream keying, which can help operators add titles, graphics, and other visual elements.
Compatible Blackmagic cameras can also benefit from camera-control functions when connected and configured appropriately. Depending on the camera and setup, users can adjust supported settings through the production system.
Video communication technology is not limited to studio broadcasts. Organisations that need communication across outdoor sites or large facilities may also explore LTE push-to-talk walkie-talkies, which serve a different purpose from HDMI-based production equipment.
Audio Mixing and Recording
Audio quality is essential for interviews, presentations, webinars, and live events. The ATEM Mini Extreme includes a Fairlight audio mixer that allows users to manage audio from HDMI sources and connected microphones.
Its two independent 3.5mm stereo audio inputs can connect compatible microphones or other audio equipment. Operators can adjust levels and control which sources contribute to the final programme.
The headphone output also allows users to monitor audio during production. This can help identify problems such as unwanted background noise, low microphone levels, or audio that is not synchronised correctly.
For recording, the switcher can save the programme output directly to compatible external USB storage. It records H.264 video in an MP4 container with AAC audio. Recording controls and status information are available through the device and its software.
This feature can be useful when creators want a local copy of a live broadcast for later editing, publishing, or archiving.
Media Pool and Graphics Management
The built-in media pool allows users to store still images for use during a production. The ATEM Mini Extreme supports up to 20 still images with fill and key.
Compatible image formats include PNG, TGA, BMP, GIF, JPEG, and TIFF. These images can be used for logos, title cards, backgrounds, and other visual elements.
The media players also support fill-and-key workflows. This makes it easier to add graphics over live video without creating every visual element during the broadcast.
For productions that include presentations or demonstrations, prepared graphics can help maintain a consistent visual style.
Compatibility and Production Setup
The ATEM Mini Extreme works with compatible HDMI cameras, computers, gaming devices, and other video sources. Its USB webcam output also allows it to connect to supported computer applications.
ATEM Software Control is available for compatible Mac and Windows systems. Users should check the current software requirements and device documentation before setting up a production environment.
A typical setup may include:
- Connect cameras and computers to the HDMI inputs.
- Connect microphones to the audio inputs.
- Attach a monitor to an HDMI output.
- Connect Ethernet for direct network streaming.
- Connect USB storage if local recording is required.
- Install and configure ATEM Software Control.
- Test each video and audio source before going live.
Creators interested in immersive technology may also want to understand how VR hardware fits into different digital experiences. Our Lenovo Explorer features, comfort, and discovery guide covers a separate category of computer-connected hardware.
Who Should Use the ATEM Mini Extreme?
The ATEM Mini Extreme is designed for users who need to manage several video sources during a live production. It may be suitable for:
- Content creators: Manage multiple cameras and visual sources during live broadcasts.
- Businesses: Produce webinars, presentations, and online events.
- Educational institutions: Switch between lecturers, slides, and demonstration cameras.
- Event teams: Manage video feeds during conferences and live programmes.
- Gaming streamers: Connect compatible gaming devices, cameras, and computers.
However, it may be more equipment than a beginner needs. Someone who streams from a single camera may prefer a simpler and less expensive setup.
Gaming creators who want to explore mobile titles on computers can also read our guide to the fastest emulator to play NieR Reincarnation. This is a separate gaming topic, but it may interest readers building broader gaming and streaming setups.
Conclusion
The Blackmagic Design ATEM Mini Extreme is a versatile live production switcher with eight HDMI inputs, direct streaming, USB webcam output, multiview monitoring, audio mixing, and a range of video effects.
Its combination of physical controls and software features makes it useful for creators, businesses, educators, and production teams managing multiple video sources. Features such as external recording, media management, and chroma keying provide additional flexibility.
Before choosing the device, consider the number of cameras you need, your audio setup, streaming requirements, and the complexity of your productions. A well-planned setup will help you make the most of the ATEM Mini Extreme.
